| Operation Manuals of GZII/GZH for OIML approved models | ||
|
||
Operation Manual of GZII/GZH for non-OIML approved models |
||
Declaratino of conformity GZII-GZH.pdf |
 Download GXII-GXH PDF |

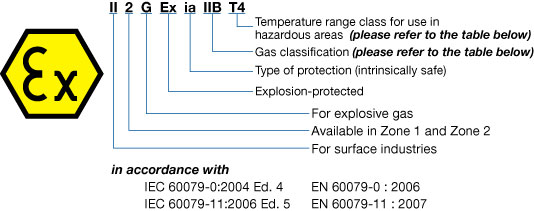

Operation area
| ⅡA | ⅡB | ⅡC | |
|---|---|---|---|
| T1 | acetone, benzene, ammonia, methanol, ethane, tolune, propane, methane, acetic acid |
coke-oven gas, acrylonitrile, hydrocyanic acid, cyclopropane |
hydrogen |
| T2 | ethanol, butanol, butane, methyl methacrylate |
ethylene, ethlene oxide, ethyl acrylate |
acetylene |
| T3 | gasoline, haxane, pentane |
acrylaldehyde, dimethyl ether |
|
| T4 | acetaldehyde, trimethylamine |
ethyl methl ether, diethyl ether |
|
| T5 | carbon disulfide | ||
| T6 | ethyl nitrite | ethyl nitrite |
Go to the Specification sheet for OIML R76 approval
(legal-for-trade) model
Go to the Specification sheet for non-OIML R76 approval(non-legal-for-trade) model
- Stainless steel housing, tough body ideally fitted to industrial scene
- mirror finish weighing pan available as standard in GZII-(B)2000(C)Ex,6000(C)Ex, 12K(C)Ex,all models in GZH(-B) series
Always keep the scale in good condition
semi-automatic calibration with built-in weight (available only with GZH(-B) series).GZII(-B) series can be calibrated with external reference weight.

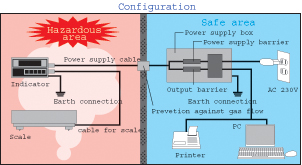

Selectable from two types in power supply ,power supply box type
or dry-cell battery type
Power supply box type
no earth connection work is necessary
Dry-cell battery type,very easy to install
no wiring work is necessary ,150 hours continuous operation
*the replacement of dry cell batttery has to be done in safe area
Easy comperator function with two limit values setting
judge the result by displaying the arrow mark as either HI (excessive),OK(appropriate),or LO(insufficient).

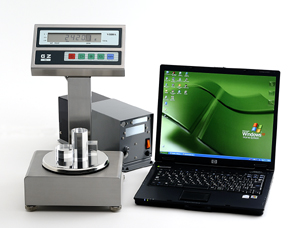

Easy connection to outside devices like PC, printer
plentiful options are selectable output options are available only with power supply box type
Common Options For GZII/GZH
(available only for power supply box type)
| GZ-R1 | Printer output(Din 5p) nter |
| GZ-R2 | RS232C output(D-sub 25p) |
| GZ-R4 | RS422A output(D-Sub 25p) |
| GZ-LM | Relay contact output |
| GZ-PC | xtended pick-up cable (max.100m,unit per 5m) |
Common Options for GZII/GZH
(available both for power supply box type and dry-cell batttery type)
| GZ-DS | Display stand |
Common Specification

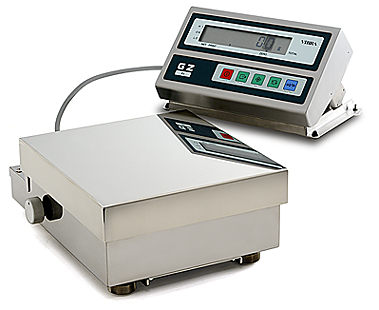

| Measuring system | Tuning-fork frequency sensing |
| Tare | Full weighing range |
| Display | LCD |
Download GZII-GZH RS232C PDF Manual
Download GZII-GZH RS422A PDF Manual
Download GZII-GZH Printer-output PDF Manual
Download GZII-GZH Relay contact option PDF Manual
