Features of DME Series
Amazing precision and performance!
Unique test-tank & housing-architecture.
  • Relative Density measurement for the Rubber & Plastic. Suitable for the quality control!
  • Test-tank & Housing-architecture Protected the measuring against Over-load and Wind.
  • Tuning-fork sensor adopted to the Subaru telescope (most accurate optical telescope) is used. Realize High Quality and High Precision 0.01g.
  • Change the weighing-pan, could be used as Precision balance 600g/0.01g.
  • High-accurate weighing is maintained by built-in reference weight. (DME-220H only)

What makes the tuning-fork sensor so precious?

Download PDF catalogue

  1. Housing
  2. Test-tank
  3. AC adaptor
  4. Underwater sample Holder
  5. Tweezers
  6. Thermometer
  7. Pan guide
  8. Weighing-pan
  9. Pan base
  10. Calibration Weight (DME-220E only)

* Change the weighing-pan, it can be used as usual precision electronic balance.

1. The water temperature measuring and storing

Do the measurement of the water temperature. Then, set it to the balance. Accurate Relative Density measurement is done by the compensation by the refenence water temperature.

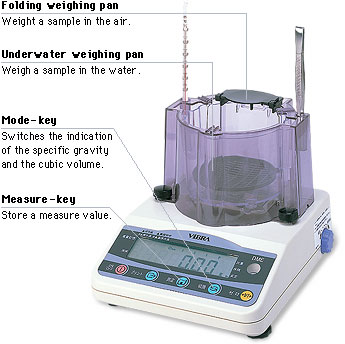

2. Weight a sample in the air, and storing

Load the sample on the Folding weighing-pan. When the weight in the air is indicated, push the Measure-key, and store to the balance the weight data.

3. Weight a sample in the water, and storing

Load the sample on the underwater Weighting-pan. When the weight in the water is indicated, push the Measure-key, and store to the balance the weight data.

4. The relative density and volume indication

The value of the relative density and the volume can be seen with the Mode-key. The delta mark points the symbols of the relative density or the volume on the display panel.

Hydrometer Kit. (Option)

In case of the lighter sample than the water

Cover the sample with attached Underwater Sample Holder, and measure it.

Models



Model Readability (density) Readability (volume) Hydrometer option Data store condition Calibration
DME-220E 0.01g 0.01cm3 Not-avairable Fixed condition External reference weight
DME-220HE 0.001/0.01g 0.001/0.01cm3 Option 3 type selectable Built-in Weight
Capacity
(density measurement)		 220g
Capacity
(weight measurement)		 600g
Readability 0.01g
Measuring method Underwater Replacement Method (JIS Z8807)
Printer Output Standard
Size 230 × 180 × 170mm



Options
  • RS-232C Output
  • Rechargeable battery
    (12 Hour Charge, 32 Hour Operable)
    * Battery cannot be used with the output as same time.
  • Hydrometer Kit (For DME-220H only)
