- That Revolutionizes the Concept of
0.001-ct Measurement - Newly developed MMTS
(Mono-Metal Tuning-fork Sensor) - Incredibly high resolution from an ultra-compact system
- Quick response and high stability
- Roll-top Shield's frontal access makes weighing easy
- Newly developed MMTS
Download PDF manual of CT-600CE
Declaration of CE conformity CT.pdf

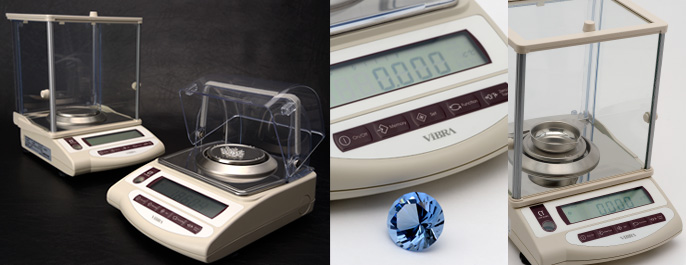

Compact housing

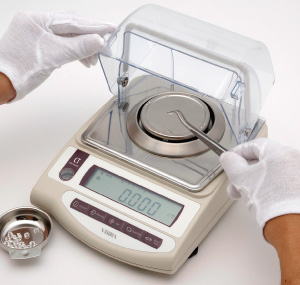

CT series is equipped with unique "Roll-top"windshield. It enables user to access the balance from front and reduces the volume of balance housing. Standard three-sliding windshield model is also available.
Readability from 0.001ct to 0.01ct
0.001ct readability with capacity 600ct is very much fitted to weighing of diamond. It is typically used in diamond jewelry shops and diamond manufacturers.
| Model | "Roll-top" windshield type |
Three-sliding windshield type |
||
|---|---|---|---|---|
| CT 603 CT 603CE |
CT 1602 CT 1602CE |
CT 603G CT 603GCE |
CT 1602G CT 1602GCE |
|
| Capacity | 600ct | 1600ct | 600ct | 1600ct |
| Readability (d) | 0.001ct | 0.01ct | 0.001ct | 0.01ct |
| Verification intervals (e) *1 | 0.01ct | 0.1ct | 0.001ct | 0.1ct |
| Repeatability | 0.001ct | 0.01ct | 0.001ct | 0.01ct |
| Linearity | ±0.003ct | ±0.03ct | ±0.003ct | ±0.03ct |
| Stabilization time | 4.0 sec. | 4.0 sec. | 4.0 sec. | 4.0 sec. |
| Pan size | 80mm dia | 80mm dia | 80mm dia | 80mm dia |
| Calibration | External | External | External | External |
| Output | RS232C | RS232C | RS232C | RS232C |
| Dimension | 235×182×165mm | 251×207×260mm | ||
| Weight | Approx. 1.6kg | Approx.2.4kg | ||
- *1 "CE" models are OIML class I approved. Verification interval "e" is available only in "CE" models.
| AJBT(S) | Rechargeable battery |
|---|---|
| CTCP | Carat pan |
| SDI/SDR | Satellite display |
