- Brilliant & compact tuning-fork balance
- Super bright back-lit LCD
- Quick response and accurate measurement
- User friendly operation
- OIML (classⅡ) aproved

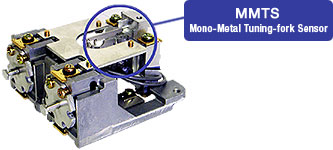

Newly developed MMTS
(Mono-Metal Tuning-fork Sensor)Not only does the tuning-fork sensor provide quick response and stability, but its newly developed MMTS also realizes a high resolution of 1/62,000.
Declaration of CE conformity SJ-SJP.pdf
Comparator function
Users can tell at a glance whether a load is too heavy, too light, or the right weight according to the upper/lower weight limits they preset.
Bar graph display
A 20-step bar graph display readily indicates the current loads weight against the capacity.
Selectable modes and units
Users can select from 3 modes (weight, unit count, and percentage) and from 12 units of weight.
Weight units:
g, ct, oz, lb, ozt, dwt, GN, tl (Hong Long), tl (Taiwan), tl (Singapore, Malaysia) , momme, tola
5-year warranty
MMTS is covered by a 5-year warranty that attests to its long-term stability and durability.
| Model | Capacity | Readability | Repeatability(s) | Non-Linearity(typ.) | Pan size | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| SJP-220E SJP-220CE |
220g | 0.01g | 0.01g | ±0.01g | φ 140mm | 235 × 182 × 75mm | Approx. 1.3kg |
| SJP-420E SJP-420CE |
420g | 0.01g | 0.01g | ±0.01g | |||
| SJP-620E SJP-620CE |
620g | 0.01g | 0.01g | ±0.01g | |||
| SJP-1200E SJP-1200CE |
1200g | 0.1g | 0.1g | ±0.1g | 170 × 142mm | ||
| SJP-2200E SJP-2200CE |
2200g | 0.1g | 0.1g | ±0.1g | 180 × 160mm | 265 × 192 × 87mm | Approx. 2.7kg |
| SJP-4200E SJP-4200CE |
4200g | 0.1g | 0.1g | ±0.1g | |||
| SJP-6200E SJP-6200CE |
6200g | 0.1g | 0.1g | ±0.1g | |||
| SJP-12KE SJP-12KCE |
12000g | 1g | 1g | ±1g |
- * SJP-XXXXCE stands for EC type approval models
| Weighing units(*1) | g, ct(*2), oz, Ib, ozt, dwt, GN(*3), tl (Hong Kong), tl (Taiwan), tl (Singapore, Malaysia), momma, tola |
|---|---|
| Power source | AC120/230V DC9V |
| Output | RS-232C (option) |
| Measuring system | Tuning-fork frequency sensing (MMTS) |
| Tare | Full weighing range |
| Calibration | With external weight |
| Display | LCD with back-light |
| Modes | Weighting, counting, percentage |
- *1 only 5 units are available in SJP-XXXCE
- *2 carat in not available in SJP-6200CE and SJP-12KCE
- *3 GN is not available in SJP-12KE and SJP-XXXCE
| Model | SJ-220E - 1200E SJ-220CE - 1200CE |
SJ-2200E - 12KE SJ-2200CE - 12KCE |
|---|---|---|
| RS-232C output | SJR(S) | SJR(M) |
| Relay contact | SJLM(S) | SJLM(M) |
| Under weighing hook | AJUH(S) | AJUH(M) |
