Sophisticated Balance, the Professional's Choice.
ViBRA LN series always offers you the complete weighing solution. The capacity ranges from 220g to 31kg, the readability from 1mg to 0.1g.
The advantages like quick response, clear fluorescent display, tough housing, stylish design... ViBRA LN series can be suitable for every occations from laboratory, light&heavy industry, and jewelers..

four weighing modes

Download PDF catalogue

Download PDF catalogue of CE

Download PDF manual

Download PDF manual of CE

Download PDF Phisical Dimensions LN 223 - LN 623

Download PDF Phisical Dimensions LN 1202 - LN 15001

Download PDF Phisical Dimensions LN 21001, LN 31001

Declaration of Conformity LN series

Statistic function for QC & etc...

Statistic function for QC & etc... ViBRA LN series has the function to automatically calculate the various statistical data from the measurement results. This data can be useful for the quality control in the assembling line and the statistical checks of prepackaged products. The data can be output to the printer and PC.

Accurate measurement by appropriate calibration

It is highly important to to keep the accuracy of the balance by calibration. The procedure of the calibration is sometimes bothering, but in ViBRA LN series, you can adjust the balance with one-touch of CAL key (internal weight model only).

Quick response and stable indication

The quick response and the stable indication are important for almost all the weighing operations. ViBRA LN series promises you the quickness and stableness so that it can make the measurement works much more efficient and less time-consuming.

Density measurement mode

To measure the density of the object is one of the most typical applications for the precision balance. ViBRA LN series offers you the function to easily calculate the density from the measurement results.
* the density measurement kit in the image is option.

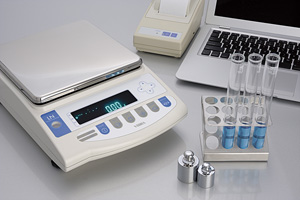

Connection to the outside devices

ViBRA LN series has RS232C as standard (two outputs) and can be easily connected to the printer, PC. You can keep the weighing results in the printed and/or electric forms.

Models

EXTERNAL WEIGHT MODELS

Model LN 223 LN 323 LN 423 LN 623 LN 1202 LN 2202 LN 3202
Capacity 220g 320g 420g 620g 1200g 2200g 3200g
Readability 0.001g 0.01g
Repeatability(s) 0.001g 0.01g
Non-Linearity(typ.) 0.001g 0.01g
Pan size 120×140mm 200×200mm
Calibration with external weight only
Weighing Units g, ct, oz, lb, dwt, GN, tl(Hong Kong), tl(Taiwan), tl(Singapore), momme, tola
Dimensions(LWH) 330×220×190mm(including windshield) 333x220x88mm
Weights Approx. 3.5kg Approx. 4.0kg
Model LN 4202 LN 6202 LN 8201 LN 12001 LN 15001 LN 21001 LN 31001
Capacity 4200g 6200g 8200g 12000g 15000g 21000g 31000g
Readability 0.01g 0.1g
Repeatability(s) 0.01g 0.1g
Non-Linearity(typ.) 0.01g 0.1g
Pan size 200×200mm 200×200mm 220×250mm
Calibration with external weight only
Weighing Units g, ct, oz, lb, dwt, GN, tl(Hong Kong), tl(Taiwan), tl(Singapore), momme, tola
Dimensions(LWH) 330×220×88mm 333x220x88mm 333x220x111mm
Weights Approx. 4.0kg Approx. 8.5kg Approx. 9.5kg

INTERNAL WEIGHT MODELS

Model LN 223R LN 323R LN 423R LN 623R LN 1202R LN 2202R LN 3202R LN 4202R
Capacity 220g 320g 420g 620g 1200g 2200g 3200g 4200g
Readability 0.001g 0.01g
Repeatability(s) 0.001g 0.01g
Non-Linearity(typ.) ±0.001g ±0.01g
Pan size 120×140mm 200×200mm
Calibration with internal and external weight
Weighing Units g, ct, oz, lb, dwt, GN, tl(Hong Kong), tl(Taiwan), tl(Singapore), momme, tola
Dimensions(LWH) 330×220×190mm(including windshield) 333x220x88mm
Weights Approx. 3.5kg Approx. 4.0kg

When you need OIML approval model, please refer the specifications of CE model

INTERNAL WEIGHT CE MODELS

Model LN 223RCE LN 323RCE LN 423RCE LN 623RCE LN 1202RCE LN 2202RCE LN 3202RCE LN 4202RCE
Capacity 220g 320g 420g 620g 1200g 2200g 3200g 4200g
Read-out(d) 0.001g 0.01g
Verification(e) 0.01g 0.1g
Repeatability(s) 0.001g 0.01g
Non-Linearity(typ.) ±0.001g ±0.01g
Pan size 120×140mm 200×200mm
Calibration with internal and external weight
Dimensions(LWH) 330×220×190mm(including windshield) 333x220x88mm
Weights Approx. 3.5kg Approx. 4.0kg

EXTERNAL WEIGHT CE MODELS

Model LN 223CE LN 323CE LN 423CE LN 623CE LN 1202CE LN 2202CE LN 3202CE
Capacity 220g 320g 420g 620g 1200g 2200g 3200g
Read-out(d) 0.001g 0.01g
Verification(e) 0.01g 0.1g
Repeatability(s) 0.001g 0.01g
Non-Linearity(typ.) ±0.001g ±0.01g
Pan size 120×140mm 200×200mm
Calibration with external weight only
Dimensions(LWH) 330×220×190mm(including windshield) 333x220x88mm
Weights Approx. 3.5kg Approx. 4.0kg
Model LN 4202CE LN 6202CE LN 8201CE LN 12001CE LN 15001CE LN 21001CE LN 31001CE
Capacity 4200g 6200g 8200g 12000g 15000g 21000g 31000g
Read-out(d) 0.01g 0.1g
Verification(e) 0.1g 1g
Repeatability(s) 0.01g 0.1g
Non-Linearity(typ.) ±0.01g ±0.1g
Pan size 200×200mm 200×200mm 220×250mm
Calibration with external weight only
Dimensions(LWH) 330×220×88mm 333x220x88mm 333x220x111mm
Weights Approx. 4.0kg Approx. 8.5kg Approx. 9.5kg

Common Specifications

Power source AC120/230V, DC12V
Output RS232C (2 outputs)
Measuring system Tuning-fork frequency system
Tare Full weighing range
Display Fluorescent display
Options



LNBT Rechargeable battery
LNLM Relay contact
LNUH Under weighing hook
LNBZ Buzzer output
LNR4 RS422A output
LNDK Density measurement kit



What makes the tuning-fork sensor so precise?

The tuning-fork sensor measures force or mass by gauging changes in oscillation frequencey when a load is applied to a long, narrow vibrator, and it digitally outputs the readings.
Unlike load cell or electromagnetic systems, the tuning-fork sensor does not rely on material distortion, electromagnetic force, heavy power cunsumption, or A/D converters, so its inherent margin of error is extremely small, and its high precision can be maintained for a long time.



ouble-Ended tuning fork (DETF) vibrator
