SIMPLE IS THE BEST.
This is the basic concept of ViBRA AJ series. Simple, but profound scope for wide measurement fields. Laboratory, factory, jewelry shops, etc... ViBRA AJ series is always the simplest & the best solution for your needs.

Features of AJ Series
ViBRA AJ series provides four weighing modes

ViBRA AJ series provides four weighing modes, simple weight measurement, parts counting, percentage weighing and carat measurement for jewelers. You can easily switch
the weighing mode by pushing function key.

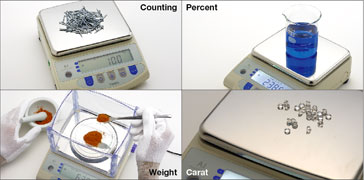

four weighing modes

Download PDF catalogue

Download PDF manual of AJ[H]-CE(220~1200)

Download PDF manual of AJ[H]-CE(2200~12K)

Download PDF manual of AJ[H]-E

Download PDF manual of Density Measurement kit option manual

Declaration of CE conformity AJ-AJH

Bright, White Back-light

Large LCD (16.5mm height) with bright & white back-light makes the weighing operation easy and comfortable even in the dark location.

Keep the Weighing Accuracy

The model with name AJ"H" has semi-automatic built-in calibration weight. You can easily calibrate the balance with built-in weight. It ensures the accurate and precise weighing operation.

Compact Housing, High Portability

The compact housing is one of the advantages of ViBRA AJ series. The space-saving design enables you to instal it even in small space.
Furthermore you can bring it everywhere you want with optional rechargeable battery.

Quick Response & Stable Indication

Quick response and stable indication are important feature in the precise weight measurement. The innovative tuning-fork sensor in ViBRA AJ series meets this demand and satisfies you.

Connection with Outside Devices

RS232C interface is installed as standard feature in every models of ViBRA AJ series. You can connect the balance to outside devices like PC.



Models



*AJ-***CE stands for EC approved model.

Model Capacity Readability Repeatability *1 Non-
Libearity *2		 Pan size Calibration Weight units *3 Dimensions
(LWH)		 Weights
AJ-220E
AJ-220CE		 220g 0.001g 0.001g ±0.001g φ118mm with external calibration weight g, ct, oz, lb, ozt, dwt, GN tl (Hong Kong), tl (Taiwan), tl (Singapore, Malaysia), momme, tola 235 × 182 × 170mm
(including windshield)		 Approx. 1.3kg
AJ-320E
AJ-320CE		 320g 0.001g 0.001g ±0.001g
AJ-420E
AJ-420CE		 420g 0.001g 0.001g ±0.001g
AJ-620E
AJ-620CE		 620g 0.001g 0.001g ±0.002g
AJ-820E
AJ-820CE		 820g 0.01g 0.01g ±0.01g 170 × 142mm 235 × 182 × 75mm
AJ-1200E
AJ-1200CE		 1200g 0.01g 0.01g ±0.01g
AJ-2200E
AJ-2200CE		 2200g 0.01g 0.01g ±0.01g 180 × 160mm 265 × 192 × 87mm Approx. 2.8kg
AJ-3200E
AJ-3200CE		 3200g 0.01g 0.01g ±0.01g
AJ-4200E
AJ-4200CE		 4200g 0.01g 0.01g ±0.01g
AJ-6200E
AJ-6200CE		 6200g 0.01g 0.01g ±0.02g
AJ-8200E
AJ-8200CE		 8200g 0.1g 0.1g ±0.1g
AJ-12KE
AJ-12KCE		 12000g 0.1g 0.1g ±0.1g



Model Capacity Readability Repeatability *1 Non-
Libearity *2		 Pan size Calibration Weight units *3 Dimensions
(LWH)		 Weights
AJH-220E
AJH-220CE		 220g 0.001g 0.001g ±0.001g φ118mm with built-in weight g, ct, oz, lb, ozt, dwt, GN tl (Hong Kong), tl (Taiwan), tl (Singapore, Malaysia), momme, tola 235 × 182 × 170mm
(including windshield)		 Approx. 1.6kg
AJH-320E
AJH-320CE		 320g 0.001g 0.001g ±0.001g
AJH-420E
AJH-420CE		 420g 0.001g 0.001g ±0.001g
AJH-620E
AJH-620CE		 620g 0.001g 0.001g ±0.002g
AJH-2200E
AJH-2200CE		 2200g 0.01g 0.01g ±0.01g 180 × 160mm 265 × 192 × 87mm Approx. 3.7kg
AJH-3200E
AJH-3200CE		 3200g 0.01g 0.01g ±0.01g
AJH-4200E
AJH-4200CE		 4200g 0.01g 0.01g ±0.01g
  • *1 standard deviation *2 typical value *3 only g, kg &ct are available in CE models.
  • e=d only for AJ-820CE. e=10d for other CE models
Measuring system Tuning-fork frequency sensing
Tare Full weighing range
Display LCD with back-light (height 16.5mm)
Power source AC120/230V DC9V
Output RS232C(standard)

Go to the inquiry regarding AJ series

Options



AJBT(S) Rechargeable battery for 220g-1200g
AJBT(M) Rechargeable battery for 2200g-12kg
AJUH(S) Under weighing hook for 220g-1200g
AJUH(M) Under weighing hook for 2200g-12kg
AJDK Density Measurement kit (220g-620g)
  • *24-hour continuous operation with AJBT

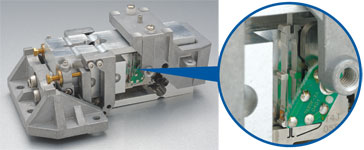

What makes the tuning-fork sensor so precise?

The tuning-fork sensor measures force or mass by gauging changes in oscillation frequencey when a load is applied to a long, narrow vibrator, and it digitally outputs the readings.
Unlike load cell or electromagnetic systems, the tuning-fork sensor does not rely on material distortion, electromagnetic force, heavy power cunsumption, or A/D converters, so its inherent margin of error is extremely small, and its high precision can be maintained for a long time.



ouble-Ended tuning fork (DETF) vibrator
