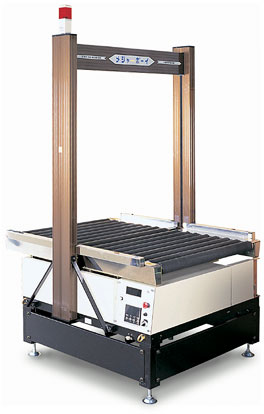

Features of MB-900 Series
Now you can throw away your outdated tape measure and scales.
  • Just put a cargo on the conveyor!
  • The Measure Boy measures cube and weight in a second.

A complete solution for complicated daily cargo measurements.

  • Freights calculation, despatch plan, etc.
  • For airfreight documentation
  • Data processing for classified items
  • For ocean freight documentation
  • Size-data collection with high speed sorter
  • For storage calculation

Simple operation greatly saves your time.

In the past, accumulating dimensional and weight data has been labor intensive, time consuming and inaccurate. Now, SHINKO has developed an ingenious system for instantly and accurately cubing and weighing cargoes/packages. At the flip of a switch it will function as a one-direction (thru only) or bi-directional (send and return) in-motion cubing and weighing system. Various output applications for remote display, printer, data processor, etc, ensure automation and systemization of logistics measurement.

Download PDF catalogue

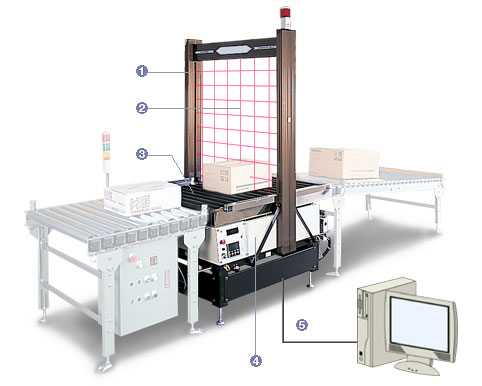

  1. Measuring gate
  2. Infrared light curtain
  3. Rotary encoder
  4. Strain gage load cell
  5. Connection with computer
Pass & return type (Semi automatic)

MB-900A
Pass only type (Automatic)

MB-900B

Hundreds units installed, with reliable performance

  • Installed in many countries and operated for many years, its reliability has been proved.
  • Reliable measurement is guaranteed with infrared light curtain.
  • “4 light scales” help accurate and L direction measurement.

Space effective & user friendly design

  • Object size to measure is about the same as conveyor size.
  • Errors and troubles are immediately reported by self error check function.
  • Not depend on the object orientation.

Compliance to the world standard

  • OIML R129 (The 1st in the world) / R51
  • NTEP (US)
  • Australian approval
  • Canadian approval

Get dimension easily, get benefit heavily

  • MB-900 series quickly measures weight and volume to get dimensional weight easily.
  • It helps customers recover revenue, save cost, avoid mistakes.
Specifications



Model MB-900A
(PASS or RETURN)		 MB-900B
(PASS ONLY)		 MB-900B-50CE
(PASS ONLY / with OIML approval)
Conveyor movement Pass or return Pass
Measuring range / increment L: 20 to 120cm / 0.5cm
W: 5 to 90cm / 0.5cm
H: 3 to 90cm / 0.5cm		 L: 20 to 120cm / 0.5cm
W: 5 to 90cm / 0.5cm
H: 5 to 90cm / 0.5cm
Measuring sensors Infrared light & rotary encoder
Weighing range / increment 0.3 to 50kg / 0.1kg 0.5 to 5kg / 0.05kg
5 to 70kg / 0.1kg
Weighing sensor Strain gage load cell
Conveyor speed 20m/min. (50Hz)
25m/min. (60Hz)

32m/min. (50Hz)
40m/min. (60Hz)

 42m/min. (50Hz)
Cargo interval 1m/min.
Data output RS232C output RS232C output
Relay contact input/output
Power supply AC230V single phase
Power consumptiion 300VA 500VA
Physical dimensions 122cm (W) × 94cm (L)
Conveyor height 532mm 500 to 550mm 460mm
Physical weight Approx. 265kg Approx. 260kg Approx. 280kg
